生产公司：LEICA（德国）

仪器型号：TCS SP5

仪器特点：

机器包含4个激光器： 405 nm激光， 氩离子激光 (laser lines 457, 476, 488 and 514 nm)， 561 nm激光，氦氖 633 nm激光，共四个检测通道

1.可将紫外、可见和红外激光集成于一个系统；

2.标配高透光率的滤片式分光器；也可选配声光分光器AOBS，灵敏度高；

3.x2y专利三镜扫描技术，提供21.2mm均匀大视场；

4.高分辨成像扫描镜：图像分辨率高达8192x8192；

5.高速扫描镜：扫描速度高达250帧/秒；

6.两种扫描镜可集成于一个系统(Tandem系统)中，为高清晰度形态学成像及高速动态观察之首选；

7.具备独立于物镜之外的放大功能，1x~64x连续可调，为局部细节的观察提供便利；

8.棱镜分光，光谱检测，检测灵敏度高；

9.可配备5个水冷式光电倍增管(PMTR9624)，同时采集5个光谱式荧光通道图像；

10.提供3D成像、共定位分析、去卷积、拼图、动态数据模式、动态追踪、FRAP、FRET等多种软件模块。

放置地点：上海市华山路1954号我校教三楼Med-X研究院231室

联系人：顾翔

电话：13764512572

Email：Hallelujah@sjtu.edu.cn

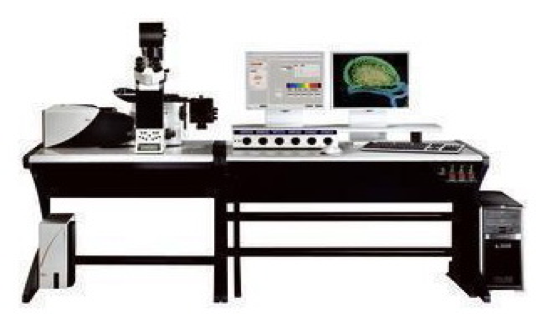

Leica TCS SP5 Laser Scan Confocal Microscope

Manufacturing Company: Leica（Germany）

Instrument Model: TCS SP5

Character:

Contains 4 laser devices: 405nm laser, Argon laser(include laser lines 457nm, 476nm, 488 nm and 514nm ), 561nm laser, 633nm HeNe laser; 4 fluorescence detection channel.

1. Integrate Ultraviolet laser, Visible laser and infrared laser into one system;

2. High transparency optical splitter as a standard configuration, high sensitivity AOBS as an option;

3. A patent X2Y 3-lens scanning technology, provide 21.2mm uniform field of view;

4. High resolution imaging scanning lens: scanning format up to 8192x8192 pixels;

5. High speed scanning lens: scanning speed up to 250 fps;

6. Integrate 2 scanning lens into one Tandem system. It will be your first choice for high resolution morphology imaging and high speed dynamic observation;

7. Optical zoom function independent of objectives, 1x-64x continuous adjustable, very convenient for local details observation;

8. Extended function: high sensitivity spectrum detection with prism spectrometers

9. Equipped with 5 water-cooling PMT detector, acquire 5 channels spectral fluorescence images simultaneously;

10.  Software function: 3D imaging, colocalization analysis, deconvolution, image stitching, dynamic data mode, dynamic tracking, FRAP, FRET etc.

Location: Room 231, Med-X Research Institute, No.3 Teaching Building, Shanghai Jiaotong University, No. 1954 Huashan Road, Shanghai

Contact: Shawn Gu

Telephone: 13764512572

Email: Hallelujah@sjtu.edu.cn
